Gaurd Rail
The economics, versatility, and performance of Guiderail surpass all other roadside barrier systems. Guiderail provides highly-visible protection in all weather conditions helping to increase driver confidence. The Guiderail system absorbs the impact of out-of-control vehicles while guiding the vehicle to safer stops. Proven results and consistent material quality make steel Guiderail systems the right barrier choice

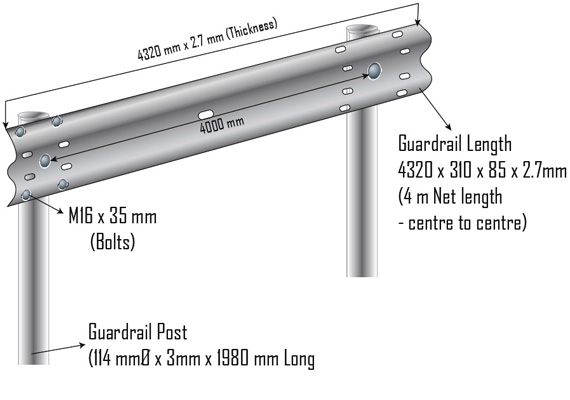

Gaurd Rail W - Beam
Thickness:4320 mm x 2.7 mm
Bolts:M16 x 35 mm
Guardrail Post: 114 mmØ x 3mm x 1980 mm Long
Guardrail Length :4320 x 310 x 85 x 2.7mm (4 m Net length – centre to centre)

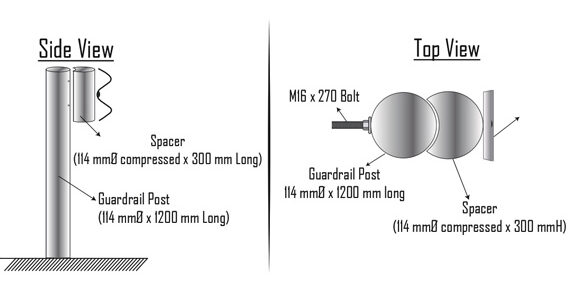

Round Posts
SIde View:
- Spacer : 114 mmØ compressed x 300 mm Long
- Guardrail Post : 114 mmØ x 1200 mm Long
Top View
- Bolt :M16 x 270
- Guardrail Post : 114 mmØ x 1200 mm long
- Spacer : 114 mmØ compressed x 300 mmH

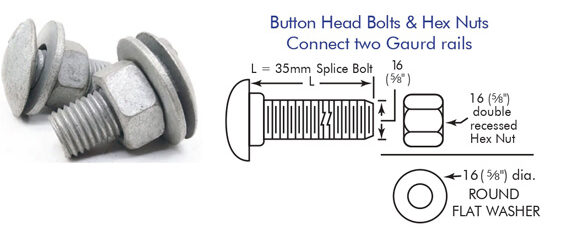

Fasteners
Splice Bolt: L=35mm
ROUND FLAT WASHER: 16( 5⁄8″) dia.
double recessed Hex Nut:16 (5⁄8″)

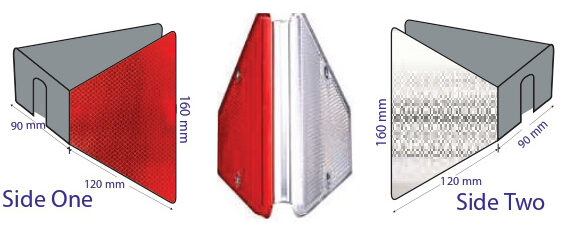

Reflectors

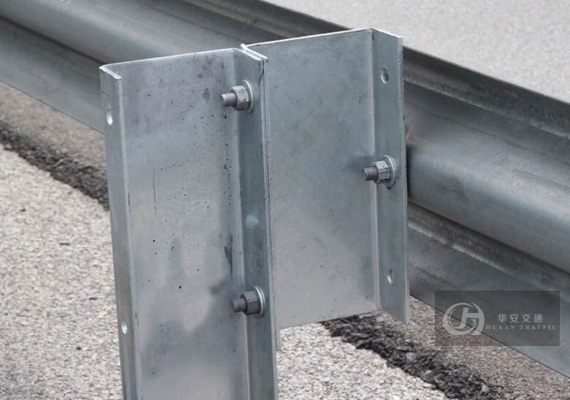

C-type Guard rail post
Smart sign provide by new technology, highway guardrail C post is a popular type because of its advantage of low cost, higher security, environmental protection. This type of post is the most common applied post in the highway guardrail projects and can be hammered by different types of hammers.
